VANTAGE 95 Horizontal Panel Saw | dimensions
Horizontal Squaring Machine Vantage 95 – 3200
Panel saw dimensions
Cutting capacity
Horizontal Panel Saw Vantage 95 – 3800
Panel saw dimensions
Cutting capacity
Horizontal Panel Saw Vantage 95 – 4500
Panel saw dimensions
Cutting capacity

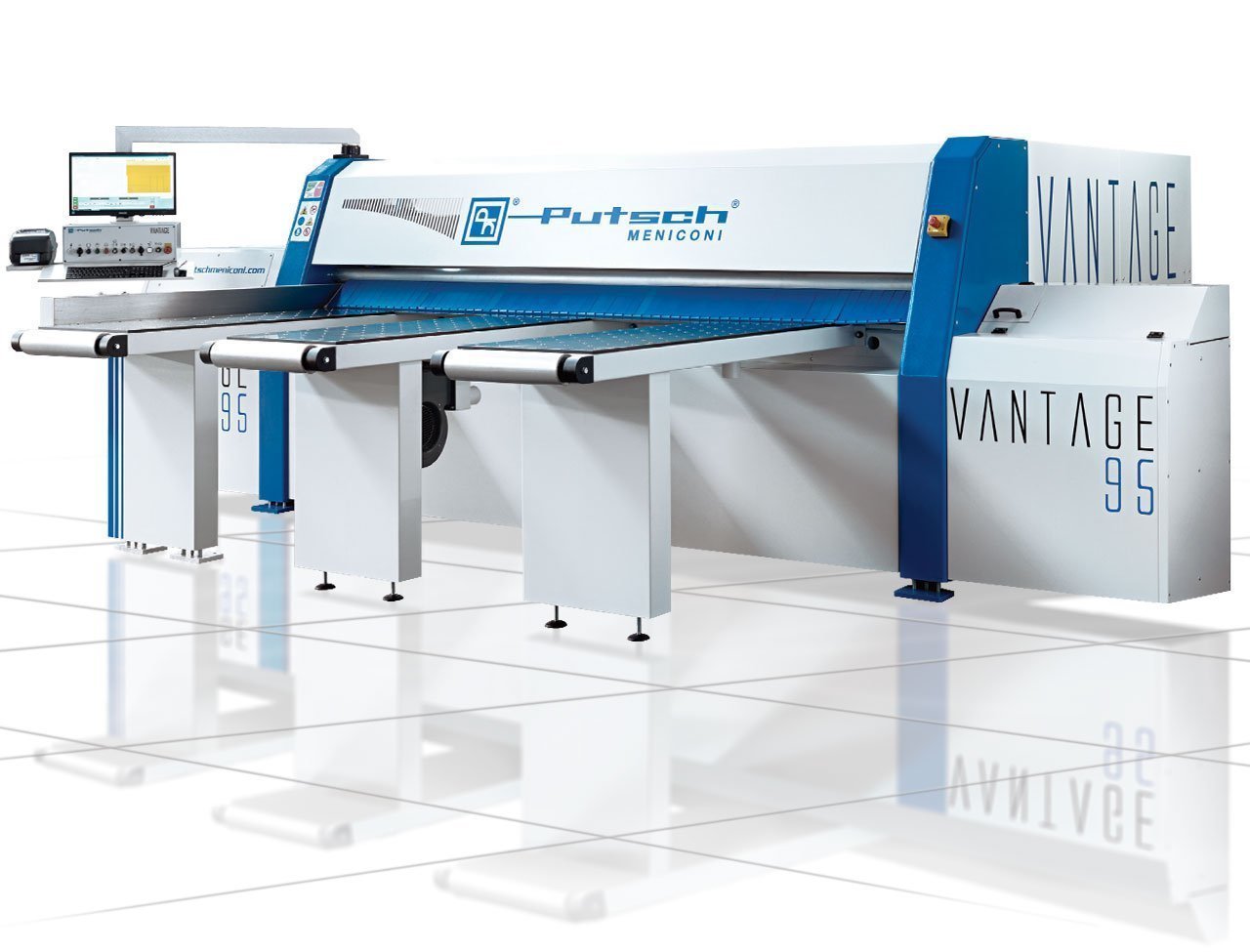

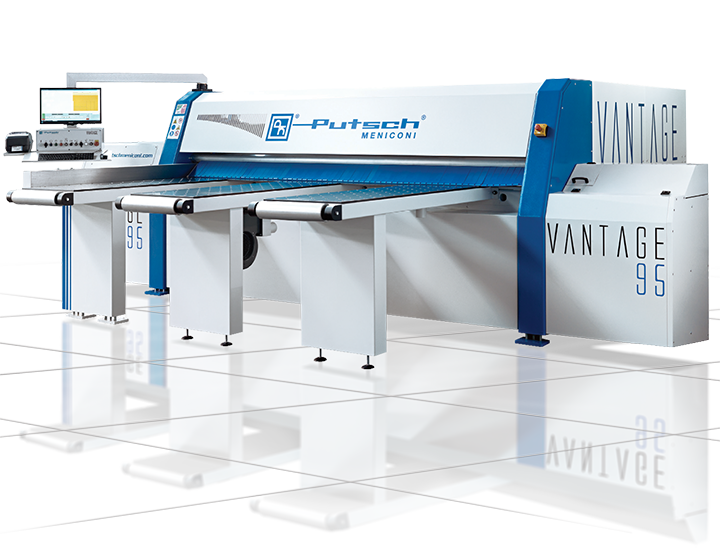

VANTAGE 95 Horizontal Panel Saw
The horizontal beam panel saw has an heavy duty structure able to withstand the most difficult cutting conditions and projected for an intensive use that has very short tuning and working times.
This horizontal panel saw is part of the new generation of Putsch® Meniconi Spa cutting machines that always guarantee the highest cutting precision and performance: rack-and-pinion feeding system assures precision and high-speed to avoid dangerous vibrations. Automatic adjustment of the main blade projection on 3 levels (mm 22-52-95) based on the thickness of the panel to be cut. The pneumatic blade changing system allows the easiness of execution with reduced times for the replacement of the blades, without tools.
With Putsch Meniconi VANTAGE 95 is possible to execute several cutting operations in accordance to different types of materials, including also post-forming panels.
Putsch® Meniconi Spa Vantage 95 horizontal panel saw offers different cutting dimensions with its three customized models of 3200-3800-4500 mm cutting length by 3200-3800-4300 mm pusher feeding run. The user friendly programming of Vantage 95 Putsch® Meniconi through Office PC is extremely simple and user-friendly. The Vantage 95 Putsch® Meniconi horizontal beam panel saw is equipped with a “Putsch®-Cut” optimizer that allows an easy cutting management and the highest care of the waste and high productivity. The optimizer can be installed both on board of the machine and in the office.
Horizontal beam saw VANTAGE 95 has a standard main blade motor of 9,2 kw and 1,1 kw standard blade scoring motor. More powerful motors available under request. The intuitive interface of Putsch® Meniconi VANTAGE 95 horizontal panel saw supports the user in the setting of the cutting types: consequently, you can get the improvement of productivity and waste of time.
Ask for an offer for your Vantage 95 horizontal Panel Saw, you will be contacted by Putsch® Meniconi Sales Department that will guide you to the purchasing of the best customized panel saw.
Discover | VANTAGE 95 horizontal panel saw
Putsch® Meniconi
Panels pusher whit pneumatic clamps
Panels pusher whit pneumatic clamps
Independent rising of blades on guides with recirculating ball
Independent rising of blades on guides with recirculating ball.
Movement and positioning by racks and pinions with sensor and magnetic strip
Movement and positioning by racks and pinions with sensor and magnetic strip
Brushless motor for pusher with reduction gear
Brushless motor for pusher with reduction gear

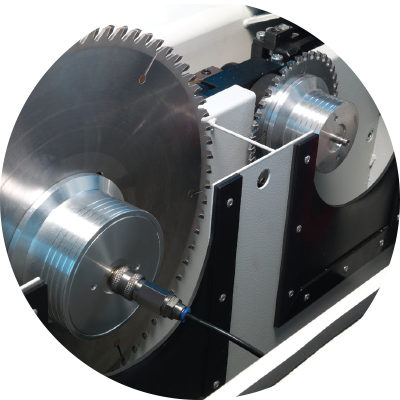

Saw carriage with pneumatic saw blades change
Saw carriage with pneumatic saw blades change
Saw carriage movement with rack and pinion system and carriage sliding on cylindrical guides.
Saw carriage movement with rack and pinion system and carriage sliding on cylindrical guides.
Putsch cut optimizer
Putsch® cut optimizer
BLADE PROJECTION
mm 95 or mm. 110
CUTTING BLADE
Ø mm 350 or mm. 380
CUTTING LENGTH
mm 3200 – 3800 – 4500
PUSHER RUN
mm 3200 – 3800 – 4300
MAIN BLADE MOTOR
kw 9,2
SCORING BLADE MOTOR
Kw 1,1
SCORING BLADE
Ø mm 150
BLADES CARRIAGE SPEED
Standard 3-70 mt/min.
Optional 1-130 mt/min. (brushless)
PUSHER SPEED
Standard 3-70 mt/min.
Optional 1-130 mt/min. (brushless)
AIR FLOATING TABLES
nr. 3 (3200 – 3800)
nr. 4 (4500)
PNEUMATIC CLAMPS
nr. 5 (3200 – 3800)
nr. 4 (4500)
