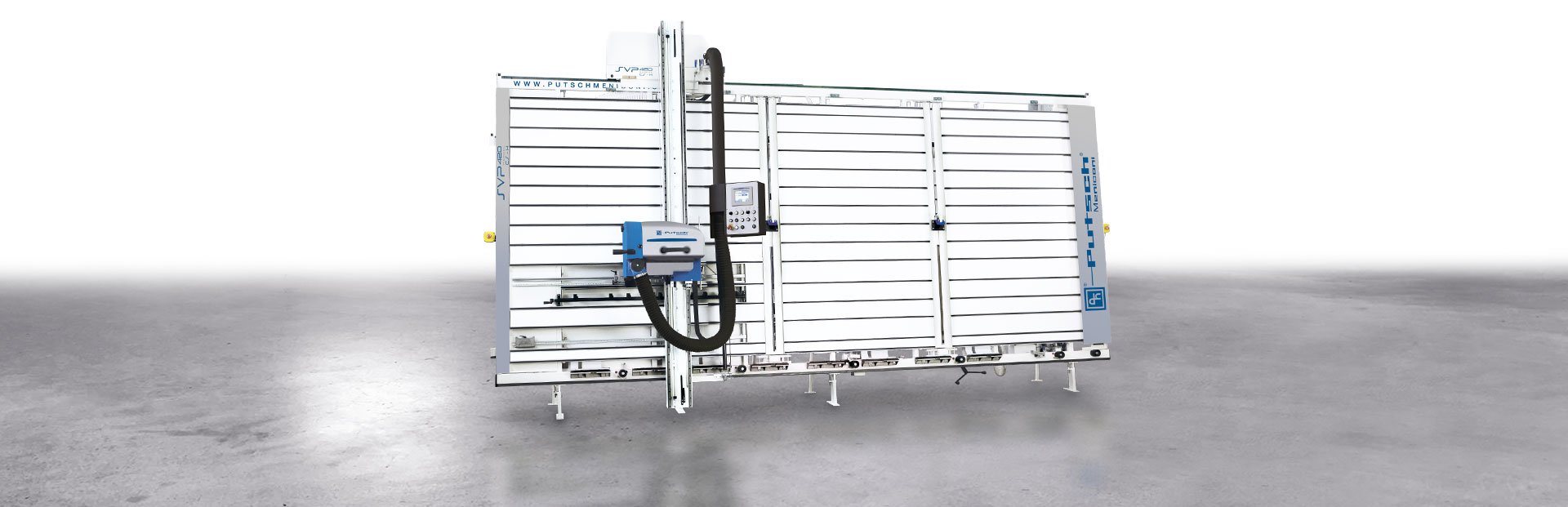

SVP 420 A CSH Panel Saw
SVP 420 A CSH panel saw has the fundamental characteristic of having 2 movable clamps to lift panels till 120 kg with a depth till 35 mm to make trimmings on the lower part of the panel.
Through this system the operator can do trimmings in a totally independent way participating to an enormous reduction of the producing cycle. SVP 420 A CSH as SVP 420 is equipped with an engraving with independent motor and linear guides to move the head.
This is one of the best cutting systems extremely precise and patented by Putsch® Meniconi since 2004.
Cutting materials
- All
- plastic materials
- special materials
- wood
Ask for an offer for your SVP 420 A CSH Vertical Panel Saw, you will be contacted by Putsch® Meniconi Specialized Technicians.
Optional | Discover the Powerful Putsch® Meniconi Panel Saws !
ELECTRICAL VERTICAL MEASURING DISPLAY
Electrical vertical measuring display
The electrical vertical measuring display precisely measures, in the order of millimeter centimes, making each cutting solution perfect.
ELECTRICAL HORIZONTAL MEASURING DISPLAY
Electrical horizontal measuring display
The electrical horizontal measuring display precisely measures, in the order of millimeter centimes, making each cutting solution perfect.
ANGLE CUTTING DEVICE
Angle cutting device
The angle cutting device permits to incline the panel to be cut precisely.
LOW LEVEL STOP
Low level stop
Low level stop installed below the standard stop, able to comfortably cut small heavy panels loaded on lower supports instead of on the flappable device.
EXTRA SHORT CUTTING DEVICE (RH)
Extra short cutting device (RH)
If necessary, the extra short cutting devices allows to works a small pieces in confortable position.
REPEAT CUTTING DEVICE OF HORIZONTAL STRIPS
Repeat cutting device of horizontal strips
Repeat cutting device of horizontal strips includes a stop to block the panels offering great working easiness when you are on the repetitive cutting phase.
TRK DUSTING SYSTEM
TRK Dusting System
Dust catcher for horizontal cuttings to be linked to an aspirator.
SVP 420 A CSH Panel Saw – Independent Motor with Engraving Group
Putsch® Meniconi SVP 420 A CSH vertical panel saw has the greatest and unique advantage to have a scoring unit with independent motor. Putsch® Meniconi is the only manufacturer in the World to get this system on the vertical panel saws.
SVP 420 A CSH Panel Saw – Engraving Group materials cutting
The engraving group with two double blades is apt for the work of chipboard panels, ennobled wood veeners, malammine and laminates. The width of the dent is in relation to the main blade creating a pre-cut and permitting a materials cutting more precise and cleaner.
SVP 420 A CSH Panel Saw– Head Sliding along 2 linear guides
Putsch® Meniconi SVP 420 A CSH vertical panel saw has the sliding of the head as a standard equipment along two linear guides permitting to the operator an high speed of use and tuning of the horizontal cuttings.
SVP 420 A CSH Panel Saw – Accessory Electrowelded frame
Putsch® Meniconi SVP 420 A CSH panel saw is provided with electrowelded frame that we can equip with TRK system with aspirator for the horizontal cutting and ECO system with TRK aspiration for the horizontal cutting.
SVP 420 A CSH Panel Saw – Clamp system to lift panels
SVP 420 CSH is equipped with a system of steady clamps, that permits the lifting of the panels to make the trimmings of the lower part. The clamps are positioned to such a distance to permit the lift of heavy panels of great dimensions.
SVP 420 A CSH Panel Saw – the best movable platen
On the front part of SVP 420 A CSH Putsch® Meniconi there is a movable laying platen where we can lay in all security the panels to cut.
SVP 420 A CSH Panel Saw – Automatic vertical cutting and horizontal cutting
Putsch® Meniconi SVP 320 A CSH vertical panel saw is able to cut automatically different types of materials. SVP 320 A CSHpanel saw has automatic plunging and return of the blade group with the possibility to select the stop at the end of the cycle or return to the starting point with the double advancing speed 12-24 m/1′.
Sezionatrice SVP 420 A CSH – Absolute Cutting Control
Putsch® Meniconi SVP 420 A CSH panel saw has an advanced control system for vertical and horizontal cuttings, panels measuring. The touch system includes two control panels, one for the setting of the commands to the machine linked to the classic analogic panel and a 10″ touch screen below.
Within 48 hours You can receive Your free estimate of Your Putsch® Meniconi SVP 420 A CS TOUCH panel saw
START NOWgt;>>
Download the catalogue of Putsch® Meniconi SVP 420 A CSH Panel Saw
From more than 60 years of cutting experience, we introduce a new vertical panel saw that offers the possibility to trim also the panel bottom part to avoid heavy rotation operations.
The removable clamps are Putsch® Meniconi exclusive system. The clamps are positioned at distance to allow the lifting of heavy and large panels.
Download the catalogue of Putsch® Meniconi SVP 420 A CSH Panel Saw
From more than 60 years of cutting experience, we introduce a new vertical panel saw that offers the possibility to trim also the panel bottom part to avoid heavy rotation operations.
The removable clamps are Putsch® Meniconi exclusive system. The clamps are positioned at distance to allow the lifting of heavy and large panels.
