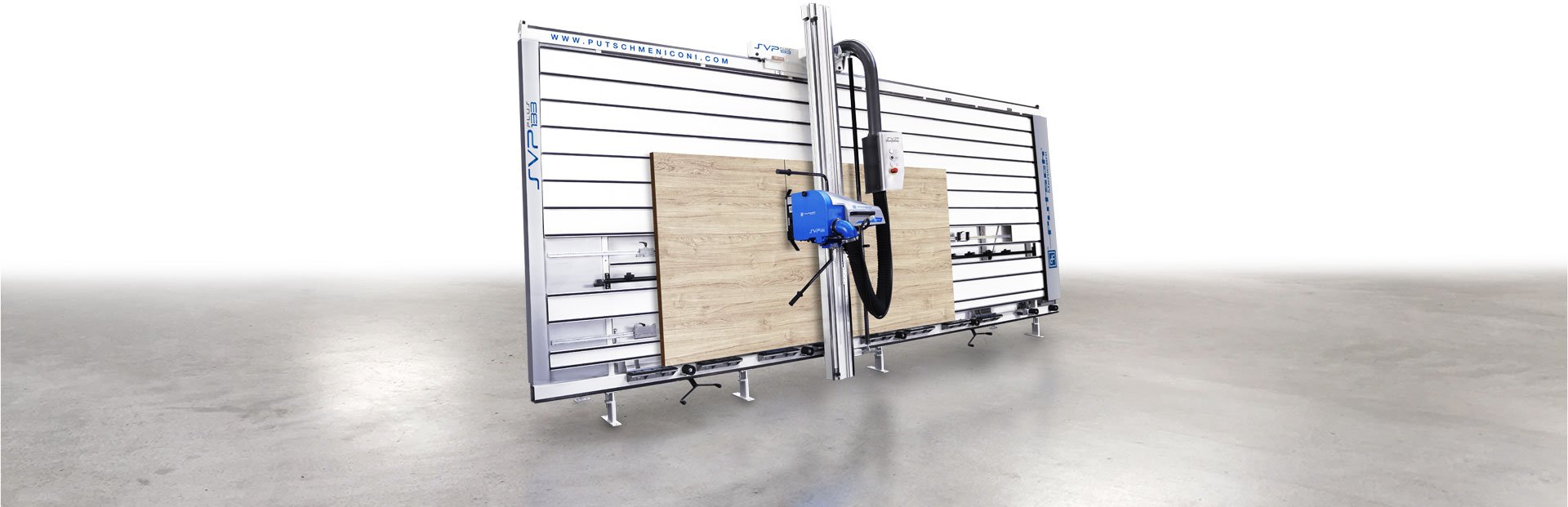

SVP 133 Panel Saw

SVP 133 manual vertical panel saw was designed by Putsch^® Meniconi team to meet the necessity, as requested by the majority of Putsch^® Meniconi Italian and international customers, to have a premium high quality vertical panel saw at convenient prices.

This is the perfect vertical panel saw to cut wood panels, plastic materials, plywood cutting, laminated panels cutting both for vertical cutting and horizontal cutting, most sold and most requested actually present on global market.

This vertical panel saw even if it has a purchasing price and upkeeping costs very low gives excellent cutting materials capacities: it performs panel cutting till a length of 3200 mm, for a maximum cutting of 1900 mm and a cutting width of 60 mm.

In its standard equipment SVP 133 MANUAL doesn’t lack of great technological innovations such as an automatic shifting frame and flippable device to support small pieces and up wheel device that favours the sliding.

Heavy duty frame, the most resistant, the most versatile, the greatest accuracy guaranteed by Putsch^® Meniconi

The frame of SVP 133 is planned to cut lengths till 5300 mm.

On request of the Italian or international Putsch^® Meniconi customer, Putsch^® Meniconi can produce and install at your company customized dimensions frames for cutting lengths till 15000 mm.

SVP 133 frame is entirely produced in Italy by the best designers of made in Tuscany to resist without effort to the cut of the hardest materials.

The safest, most practical, the greatest safety beam for a fast instantaneous and efficient material cutting

SVP 133 beam is used as horizontal and vertical guide of the blade carriage.

The beam slides along wheel inserts on the upper guide in a perfectly parallel position to the lower support basis.

The mechanism of positioning of SVP 133 panels blocks the beam in a secure way on the right vertical cutting position set.

On the beam of this vertical panel saw there are the scales of cutting setting from lower and central support.

The most powerful, silent and long-lasting scoring unit, most silent and most long-lasting for your panel cutting

The scoring unit is used to do a pre-cut on chipboard panels, veeners, melamine and laminated.

It can be used to enable vertical cutting and horizontal cutting.

SVP 133 main blade is activated by a Putsch^® Meniconi powerful and trustworthy motor.

For the maximum of your security the circular blade is equipped with a special saw guard to avoid any possible point of contact with the hands of its user and work in total security.

The best electric shifting frame safer and stronger

On the front part of the cutting machine SVP 133 Putsch^® Meniconi there is a movable shifting frame where you can load in total security the panels to cut. The grid of SVP 133 MANUAL has a Putsch^® Meniconi device to automatically move the frame to avoid the cutting of the strips during horizontal cutting. A Putsch^® Meniconi Spa sensor on the blade carriage makes an automatic control of the moving through an electromotor.

The most comfortable and easier, friendly material cutting ever seen before

The main application sector of SVP 133 MANUAL is the cutting of wood panels. This machine can cut, for example, raw chipboard panels, Plexiglass panels, polycarbonate panels and thin chipboard panels. Among the other cutting materials that can be cut with SVP 133 MANUAL vertical grooving machine there are: melamine resin panels, acoustic panels, thick wood sheets, sandwich panels, aluminium panels and plastic panels.

The Most Ergonomic Handle

The saw unit of SVP 133 panel saw slides along the ergonomic guides of the specially made Putsch^® Meniconi device. Putsch^® Meniconi ergonomic handle with whom SVP 133 is equipped with permits a cutting depth of 60mm. A junction positioned on the lower command stick on SVP 133 panel saw permits a comfortable cutting materials also to heights superior to the head of the user.
