Vertical panel saw SVP 420 AUTOMATIC by Putsch® Meniconi
SVP 420 AUTOMATIC vertical panel saw has an engraving group with 2 double blades in its standard equipment, and has an automatic movable platen that permits not to damage the loading strips during the horizontal cuttings. SVP 420 AUTOMATIC is also equipped with laying base on blocks and retractable wheels.
Automatic movement of the beam and the carriage to perform every horizontal and vertical cutting with adjustable feeding speed by inverter from 10 to 24 mts/1’.
Vertical panel saw SVP 420 AUTOMATIC is projected to occupy the less space possible inside Putsch® Meniconi customer companies.
Cutting materials
- All
- plastic materials
- special materials
- wood
Ask for an offer for your SVP 420 AUTOMATIC Vertical Panel Saw, you will be contacted by Putsch® Meniconi Specialized technicians that will guide you to the purchaising of the best customized panel saw.
Optional | Discover the distinction of the useful Premium Putsch® Meniconi Panel Saws !
Electrical vertical measuring display
Electrical vertical measuring display
The electrical vertical measuring display precisely measures, in the order of millimeter centimes, making each cutting solution perfect.
Electrical horizontal measuring display
Electrical horizontal measuring display
The electrical horizontal measuring display precisely measures, in the order of millimeter centimes, making each cutting solution perfect.
Angle cutting device
Angle cutting device
The angle cutting device permits to incline the panel to be cut precisely.
Low level stop
Low level stop
Low level stop installed below the standard stop, able to comfortably cut small heavy panels loaded on lower supports instead of on the flappable device.
Extra short cutting device (RH)
Extra short cutting device (RH)
If necessary, the extra short cutting devices allows to works a small pieces in confortable position.
Repeat cutting device of horizontal strips
Repeat cutting device of horizontal strips
Repeat cutting device of horizontal strips includes a stop to block the panels offering great working easiness when you are on the repetitive cutting phase.
TRK Dusting System
TRK Dusting System
Dust catcher for horizontal cuttings to be linked to an aspirator.
SVP 420 AUTOMATIC Panel Saw – Automatic Vertical Cutting and Horizontal Cutting
Putsch® Meniconi SVP 420 AUTOMATIC panel saw si able to automatically perform vertical cutting and horizontal cutting aluminium sheets, plastic materials cutting, composite materials panels cutting. SVP 420 AUTOMATIC panel saw has an automatic entrance and return of the blade group with the possibility to select the stop of the cycle end or return to the initial point with adjustable feeding speed by inverter from 10 to 24 mts/1’ we can do cuttings on different kind of materials.
Vertical panel saw SVP 420 AUTOMATIC – Scoring unit with 2 split saw blades
SVP 420 AUTOMATIC has 2 digital lectors with decimal precision: one is used for horizontal quotes the other for vertical quotes.
Automatic vertical panel saw SVP 420 – Independent motor
Putsch® Meniconi SVP 420 AUTOMATIC vertical panel saw has the greatest and unique advantage to have a scoring unit with independent motor. Putsch® Meniconi is the only manufacturer in the World to get this system on the vertical panel saws. The vertical panel saw can cut wood panels, plastic materials cutting and composite material cutting with the highest precision.
SVP 420 AUTOMATIC Panel Saw – Head sliding along two linear guides
Putsch® Meniconi SVP 420 AUTOMATIC has as standard equipment the sliding of the saw carriage along two linear guides allowing a more accurate and safety cutting operations.
SVP 420 AUTOMATIC Panel Saw – Welded steel frame compliant with EC regulations
SVP 420 AUTOMATIC has a Putsch® frame as standard equipment with dust collecting systems TRK and ECO patented Putsch® Meniconi and compliant with the most severe Italian, EC European regulations concerning the cleaning in working environments.
Automatic vertical panel saw SVP 420 – Pneumatic Movable Platen
On the front part of the frame of SVP 420 AUTOMATIC Putsch® Meniconi panel saw there is a movable supporting plan where we can load in total security the strips to cut. This grid has a Putsch® Meniconi pneumatic shifting frame that permits the going away of the circular blade and avoid that the horizontal approaching strips can be damaged. A Putsch® Meniconi system placed on SVP 420 AUTOMATIC makes an automatic control of the movement.

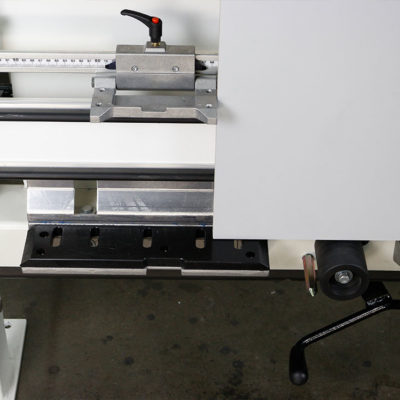

Vertical panel saw SVP 420 AUTOMATIC – Lower aluminium supports with polyzene carry-overs
Putsch® Meniconi SVP 420 AUTOMATIC has lower supports in aluminium with polizene carry-overs that create the most stable laying base ever projected before for a vertical panel saw. SVP 420 AUTOMATIC is equipped with mid-fence for a comfortable and practical cutting also at heights superior to the user’s head.
Download the catalogue fo the Wonderful SVP 420 A Panel Saw and discover now the Great Priviledges made for yourself by Putsch® Meniconi !
This new machine has some special features and especially the sliding of the saw carriage on 2 linear guides, that is the most accurate guiding system available today. This system has been already experienced by Putsch® Meniconi on the first machine introduced in the 2004. Indipendent motorized scoring system with automatic power up by plunging the same by means of the front lever.
Download the catalogue fo the Wonderful SVP 420 A Panel Saw and discover now the Great Priviledges made for yourself by Putsch® Meniconi !
This new machine has some special features and especially the sliding of the saw carriage on 2 linear guides, that is the most accurate guiding system available today. This system has been already experienced by Putsch® Meniconi on the first machine introduced in the 2004. Indipendent motorized scoring system with automatic power up by plunging the same by means of the front lever.
DOWNLOAD HERE THE GENERAL CATALOGUE
Watch the Video of Putsch® Meniconi SVP 420 A Panel Saw and discover its unmissable services and extraordinary functions !
In this HD video you will see SVP 420 A at work and discover some of its peculiar features that make it top of the range among the Putsch® Meniconi vertical panel saws. SVP 420 AUTOMATIC sectioning machine has a standard equipment with liftable wheels, for a rapid sliding of the material to section, has an welded steel frame and lower aluminium supports with polyzene carry-overs..
